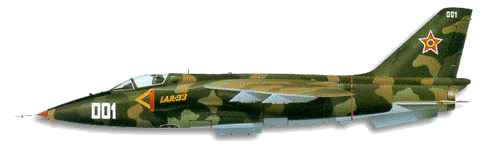

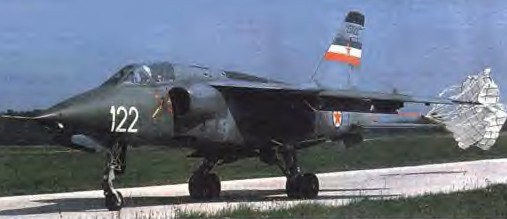

Soko J-22 Orao
|
Origin: |
Romania and
Yugoslavia |
|
Type: |
single-seat
attack aircraft |
|
Max Speed: |
610 kt / 702
mph |
|
Max Range |
460 km / 286
miles |
|
Dimensions: |
span 9.30 m /
30 ft 6.25 in
length 14.90 m / 48 ft 10.625 in
height 4.52 m / 14 ft 10 in |
|
Weight: |
empty 5500 kg
/ 12,125 lb
max. take-off 11080 kg /
24,427 lb |
|
Powerplant: |
two 2268-kg
(5,000-lb) afterburning thrust Turbomecanica/Orao Viper Mk 633-41
turbojets |
|
Armament: |
two 23-mm
GSh-23L two-barrel with 200 rounds per gun; provision for 2800 kg
(6,173 Ib) of disposable stores, including AAMs, ASMs, bombs, cluster
bombs, weapon dispensers, napalm tanks, rocket-launcher pods and drop
tanks, carried on five external hardpoints |
|
|
