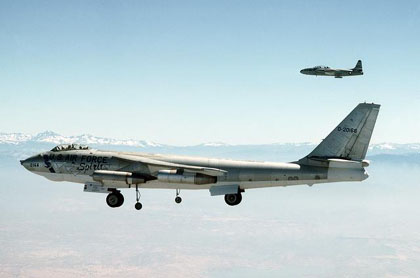

      Boeing B-47E Stratojet




      The Boeing B-47, the world's first
      swept-wing bomber, made its initial flight on Dec. 17, 1947 and quantity
      deliveries began in 1951. When production ended in 1957, more than 1,200
      Stratojets were serving with the Strategic Air Command at USAF bases
      throughout the world. By the late 1960s, the B-47 was obsolete and was
      removed from operational service.
      The B-47 normally carried a crew of
      three--pilot, co-pilot (who operated the tail turret by remote control),
      and an observer who also served as navigator, bombardier and radar
      operator. In the RB-47 reconnaissance version, the navigator also operated
      the camera equipment.
        SPECIFICATIONS
      Span: 116 ft.
      Length: 107 ft. 1 in.
      Height: 28 ft.
      Weight: 226,000 lbs. max.
      Armament: Two M-24 20mm cannons in tail turret plus bombs--nuclear
      of 10,000 lbs. of conventional bombs
      Engines: six General Electric J47s of 7,200 lbs. thrust ea.
      Cost: $1,888,000
      PERFORMANCE

      Maximum speed: 610 mph.
      Cruising speed: 560 mph.
      Range: 3,500 miles
      Service Ceiling: 39,300 ft.

          |
