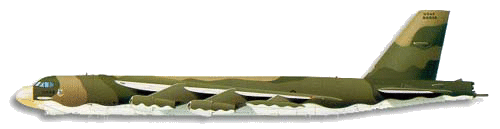

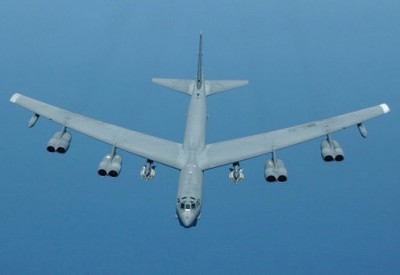

Boeing B-52

The B-52 is an intercontinental jet bomber, with a large and flexible swept wing, a fuselage incorporating enormous bomb bays, and eight engines in pairs of two. Later the B-52 was modified to carry stand-off missiles, including the large 'Hound Dog', on pylons under the wing. The 'Big Belly' modification enabled it to carry huge loads of conventional bombs. The B-52 saw combat dropping conventional bombs in Vietnam and lately in the Gulf. Increasingly vulnerable in a modern combat environment, the B-52 still offers unique bomb-carrying capacity; several plans to replace it were found to be too costly. It entered service in 1955 and will probably stay until at least 2000! The B-52 also played a role with NASA as launch aircraft, carrying into air the X-15 and others. The B-52 also was employed for recce tasks as the RB-52.

Type: B-52H
Function: bomber
Year: 1955
Crew: 6
Engines: 8 * 75.6 kN P&W TF-33-P-3
Wing Span: 56.39 m
Length: 49.05 m
Height: 12.40 m
Wing Area: 371.60 m2
Max.Weight: +221353 kg
Speed: 957 km/h
Ceiling: 16765 m
Range: 16093 km
Armament: up to 58 500-lb or 42 750-lb bombs in weapons bay and 12 750-lb bombs at each of the two underwing pylons. Or conventional or nuclear free-falling stores internally and two AGM-28A or -28B Hound Dog missiles (B-52 G & H). Four ½ inch guns in MD-9 tail turret, or one 20-mm ASG-21 rotary canon (B-52H)

Mission

Air Combat Command's B-52 is a long-range, heavy bomber that can perform a variety of missions. The bomber is capable of flying at high subsonic speeds at altitudes up to 50,000 feet (15,166.6 meters). It can carry nuclear or conventional ordnance with worldwide precision navigation capability.

Features

In a conventional conflict, the B-52 can perform air interdiction, offensive counter-air and maritime operations. During Desert Storm, B-52s delivered 40 percent of all the weapons dropped by coalition forces. It is highly effective when used for ocean surveillance, and can assist the U.S. Navy in anti-ship and mine-laying operations. Two B-52s, in two hours, can monitor 140,000 square miles (364,000 square kilometres) of ocean surface.

All B-52s are equipped with an electro-optical viewing system that uses platinum silicide forward-looking infrared and high resolution low-light-level television sensors to augment the targeting, battle assessment, flight safety and terrain-avoidance system, thus further improving its combat ability and low-level flight capability.

Pilots wear night vision goggles (NVGs) to enhance their night visual, low-level terrain-following operations. Night vision goggles provide greater safety during night operations by increasing the pilot's ability to visually clear terrain and avoid enemy radar.

Starting in 1989, an on-going modification incorporates the global positioning system, heavy stores adaptor beams for carrying 2,000 pound munitions and additional smart weapons capability. All aircraft are being modified to carry the AGM-142 Raptor missile and AGM-84 Harpoon anti-ship missile.

The use of aerial refuelling gives the B-52 a range limited only by crew endurance. It has an unrefuelled combat range in excess of 8,800 miles (14,080 kilometres).

The aircraft's flexibility was evident during the Vietnam War and, again, in Operation Desert Storm. B-52s struck wide-area troop concentrations, fixed installations and bunkers, and decimated the morale of Iraq's Republican Guard. The Gulf War involved the longest strike mission in the history of aerial warfare when B-52s took off from Barksdale Air Force Base, La., launched conventional air launched cruise missiles and returned to Barksdale -- a 35-hour, non-stop combat mission.

Background

For more than 35 years B-52 Stratofortresses have been the primary manned strategic bomber force for the United States. The B-52 is capable of dropping or launching a significant array of weapons in the U.S. inventory. This includes gravity bombs, cluster bombs and precision guided missiles. Updated with modern technology, the B-52 will continue into the 21st century as an important element of our nation's defences. Current engineering analysis show the B-52's life span to extend beyond the year 2045.

The B-52A first flew in 1954, and the B model entered service in 1955. A total of 744 B-52s were built with the last, a B-52H, delivered in October 1962. Only the H model is still in the Air Force inventory and all are assigned to Air Combat Command.

The first of 102 B-52H's was delivered to Strategic Air Command in May 1961. The H model can carry up to 20 air launched cruise missiles. In addition, it can carry the conventional cruise missile which was launched from B-52G models during Desert Storm.

The B-52's electronic countermeasures suite is capable of protecting itself against a full range of air defence threat systems by using a combination of electronic detection, jamming and infrared countermeasures. The B-52 can also detect and counter missiles engaging the aircraft from the rear. These systems are undergoing continuous improvement in order to enable them to continue to counter emerging threat systems.

General Characteristics

Primary Function: Heavy bomber
Contractor: Boeing Military Airplane Co.
Unit Cost: $30 million
Power Plant: Eight Pratt & Whitney engines TF33-P-3/103 turbofan
Thrust: Each engine up to 17,000 pounds
Length: 159 feet, 4 inches (48.5 meters)
Height: 40 feet, 8 inches (12.4 meters)
Wingspan: 185 feet (56.4 meters)
Speed: 650 miles per hour (Mach 0.86)
Ceiling: 50,000 feet (15,151.5 meters)
Weight: Approximately 185,000 pounds empty (83,250 kilograms)
Maximum Takeoff Weight: 488,000 pounds (219,600 kilograms)
Range: Unrefuelled 8,800 miles (7,652 nautical miles)
Armament: Approximately 70,000 pounds (31,500 kilograms) mixed ordnance -- bombs, mines and missiles. (Modified to carry air-launched cruise missiles, Harpoon anti-ship and Have Nap missiles.)
Crew: Five (aircraft commander, pilot, radar navigator, navigator and electronic warfare officer)
Accommodations: Six ejection seats
Date Deployed: February 1955
Inventory: Active force, 85; ANG, 0; Reserve, 9
