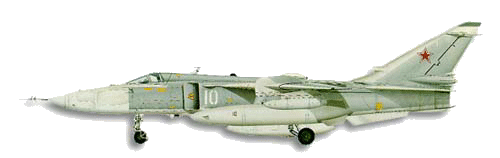

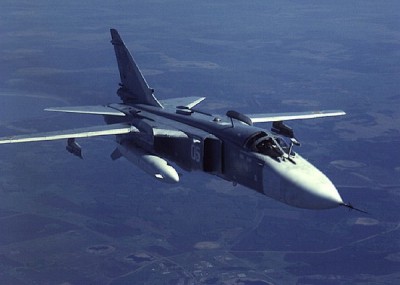

Sukhoi SU-24 Fencer
|
Origin: |
USSR |
|
Type: |
strike and attack aircraft |
|
Max Speed: |
1,250 kt / 1,439 mph |
|
Max Range |
1,050 km / 650 miles |
|
Dimensions: |
span 17.63 m / 57 ft 10 in
length 24.53 m / 80 ft 5.75 in
height 4.97 m / 16 ft 3.75 in |
|
Weight: |
empty 19,000 kg / 41,888 lb
max. take-off 39,700 kg /
87,520 lb |
|
Powerplant: |
two 11250-kg (24,802-lb) afterburning thrust Lyul'ka AL-21 F-3A
turbojets |
|
Armament: |
one 23-mm GSh-23-6 six-barrel cannon; provision for 8000 kg (17,635 Ib)
of disposable stores, including nuclear weapons, AAMs, ASMs, guided
bombs, bombs, cluster bombs, dispenser weapons, large-calibre rockets,
rocket-launcher pods, drop tanks and ECM pods, carried on nine
external hardpoints.
|
|
|
