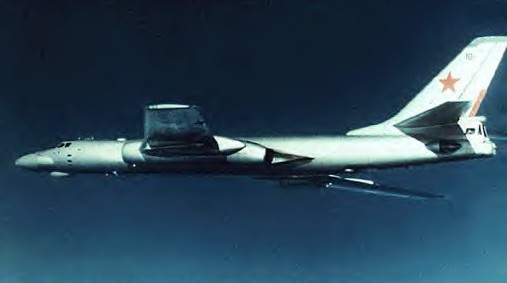

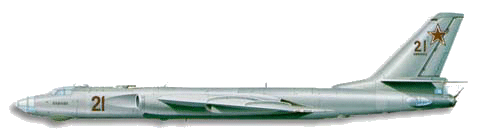

Tupolev TU-16 Badger
|
Origin: |
USSR |
|
Type: |
missile launch
platform |
|
Max Speed: |
566 kt / 652
mph |
|
Max Range |
7200 km /
4,475 miles |
|
Dimensions: |
span 32.99 m /
108 ft 3 in
length 34.80 m / 114 ft 2.1 in
height 10.36 m / 34 ft 0 in |
|
Weight: |
empty 37,200
kg / 82,011 lb
max. take-off 75,800 kg /
167,110 lb |
|
Powerplant: |
two 9500-kg
(20,944-lb) dry thrust Mikulin RD-3M turbojets |
|
Armament: |
seven 23-mm
NR-23 cannon (two each in forward dorsal, rear ventral and tail
position plus one fixed forward-firing weapon); provision for two AS-6
'Kingfish' air-to-surface/anti-ship missiles
|
|
|
