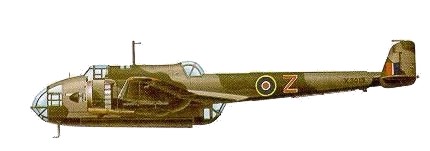

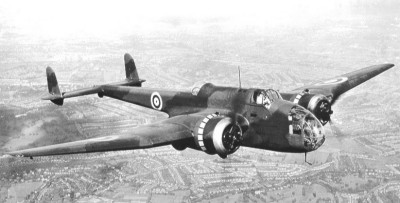

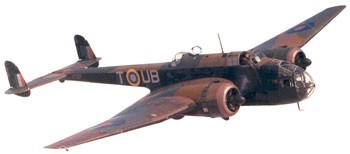

         The Hampden was the
         last of the twin-engined medium bombers to go into service during the
         expansion of Bomber Command in the late 1930s and, together with the
         Wellington and Whitley, it bore the brunt of the Royal Air Force's
         attacks against Germany in the early years of the Second World War.




         Better manoeuvrability
         and performance than its two contemporaries led to high expectations,
         but early war time operations proved the aircraft had serious
         deficiencies. Two particular problems were identified. The very narrow
         fuselage provided cramped accommodation for the crew causing fatigue on
         long missions. Unlike other British medium bombers the Hampden had no
         multi-gun power-operated turrets. Its fixed forward gun was next to
         useless and the three flexible gun mountings in the nose and fuselage
         had a limited traverse which produced a number of blind spots.
         Modifications were put in hand to provide more guns but the fuselage
         design remained a problem throughout its service life.

         After a disastrous, but mercifully short, daylight campaign Hampdens
         were switched to night operations until 1942 when a number were
         converted to carry a torpedo. Eventually 144 aircraft were modified in
         this way and the type continued in service with Coastal Command as a
         torpedo bomber until December 1943.







            Type:
            Four-Seat bomber (later torpedo bomber and minelayer).
            Origin: Handley Page
            Models: H.P. 52 Hampden I and H.P. 53 Hereford I
            First Flight:
                Prototype H.P. 52: June 31, 1936
                Production Hampden I: May 1938
                Production Hereford I: December 1939
            Service Delivery: 1939
            Production Halted: March 1942
            Number Produced:
            1,430 Hampdens (Handley Page 500, English Electric 770, Canadian
            Associated Aircraft 150)

            100 Herefords were built by Short Brothers but failed to achieve
            operational status, many rebuilt as Hampdens.

            Engine:

            Hampden I
              Model: Bristol Pegasus XVIII
              Type: 9-Cylinder air cooled radial
              Number: Two    Horsepower: 1,000 hp

            Hereford I
              Model: Napier Dagger VIII
              Type: 24-Cylinder air cooled H-type
              Number: Two    Horsepower: 1,000 hp
            Dimensions:
            Wing span: 69 ft. 2 in. (21.98m)
            Length: 53 ft. 7 in. (16.33m)
            Height: 14 ft. 4 in. (4.37m)
            Wing Surface Area: N/A
            Weights:

            Empty:
               Hampden: 11,780 lb. (5344 kg)
               Hereford: 11,700 lb. (5308 kg)
            Loaded:
               Hampden: 18,756 lb. (8508 kg)
               Hereford: 16,000 lb. (7257 kg)

            Performance:
            Maximum Speed:
               Hampden: 254 mph (410 km/h)
            Initial Climb: 980 ft/min (300 m/min)
            Service Ceiling: 19,000 ft. (5790m)
            Range (Fully loaded): 1,095 miles (1762 km)

            Armament:
            One .303 in. Vickers fixed forward.
            One .303 in. Lewis manually aimed from nose by
                nav/bomb aimer.
            One .303 in. Lewis manually aimed by wireless
                operator from upper rear position.
            One .303 in. Lewis manually aimed by lower
                rear gunner.

            By January 1940 both rear positions refitted with twin Vickers
            and increased firing arcs.

            Payload:
            4,000 lb. (1814 kg.) of bombs internally.

            By January 1940 hardpoints
            were added for two 500 lb. bombs added below outer wings, provision
            for carrying mines or one 18 in. torpedo
               |




          |
