                                          A
                                          New-Old Antique

       by Budd Davisson, courtesy of
       www.airbum.com




       Aviat
                                          Monocoupe 110 Special
                                          Right up
                                          front I want to make an apology: I
                                          want to apologize to Stu Horn, Aviat's
                                          president, and all the folks up in
                                          Afton, Wyoming for what I was thinking
                                          the first time I saw their version of
                                          the legendary clipped wing, Monocoupe
                                          110 Special. I looked at that tiny
                                          tail, the non-existent windshield, the
                                          tall narrow gear and I was thinking,
                                          "Man that thing is going to be a real
                                          lunch eater. They're crazy if they
                                          think they can sell those things to
                                          mere mortals.!" Now, having flown the
                                          airplane I know how deceiving looks
                                          can be and how far off base I was. I
                                          apologize because, while the airplane
                                          isn't going to be everyman's idea of a
                                          great airplane, to someone who wants a
                                          fast, fun flying machine that truly
                                          has a character all its own, the Aviat
                                          110 Special is certainly it.
                                          When I finally got
                                          my chance to fly the airplane and was
                                          in the process of doing this
                                          incredibly graceless stretching
                                          exercise called "climbing on-board", I
                                          couldn't help but remember pilots
                                          inspecting the airplane at its
                                          introduction at Oshkosh '99: they
                                          quickly separated into two camps. One
                                          was shaking their heads, clearly
                                          amused with just a hint of fear in
                                          their eyes. The other group however,
                                          had fire in their eyes and it was all
                                          they could do to keep from drooling.
                                          Like we said, not everyman's airplane.




                                          When
                                          viewing Aviat's new airplane, a pilot
                                          has to remember several things. First,
                                          the clipped wing version of the
                                          Monocoupe, the 110 Special, was
                                          originally supposed to be a pylon
                                          racer with Johnny Livingston at the
                                          controls and it's designed to fly that
                                          way. Second, people were smaller in
                                          those days. The forgoing facts mean
                                          that both big wings and big cockpits
                                          were unnecessary. The first time you
                                          sit in the airplane, you'll also
                                          assume they thought windshields were
                                          unnecessary as what there is of it is
                                          well above your head.

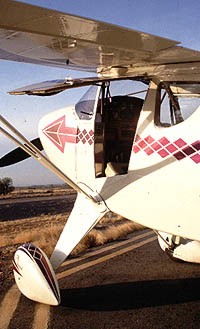

                                          The cockpit is
                                          narrow. Probably one of the narrowest
                                          of any two place airplane being
                                          offered for sale. That's just the way
                                          airplanes were designed in the late
                                          1920's. Aviat, to their credit,
                                          however has come up with an
                                          interesting solution: rather than
                                          going with the original thick, wood
                                          doors, they designed a nifty steel
                                          frame door that's less than an inch
                                          thick and adds close to three inches
                                          to the shoulder and hip room. So, now
                                          it's tight, but not uncomfortably so.
                                          The door also hinges upwards with a
                                          nitrogen assist cylinder that works
                                          beautifully. It makes getting into the
                                          airplane much easier than with the
                                          original doors and does away with the
                                          need for a jettisoning mechanism which
                                          will be necessary when it is approved
                                          for aerobatics. Still, doing some
                                          stretching exercises would be a good
                                          idea before trying to board. They say
                                          a step is being designed, which should
                                          help.

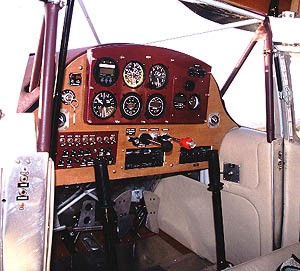

                                          The cockpit also
                                          has a thoroughly antique feel to it.
                                          For one thing, the top edge of the
                                          instrument panel is almost even with
                                          the top of your head because of the
                                          steep deck angle. More interesting,
                                          the only part of the windshield that
                                          isn't covered by motor is a tiny
                                          sliver at either end of the slightly
                                          concaved instrument panel. However,
                                          even though the windshield is
                                          virtually useless in the three-point
                                          position, the airplane somehow doesn't
                                          feel much blinder than many other
                                          taildraggers. This is because the
                                          fuselage tapers towards your feet just
                                          after it goes past your shoulders
                                          which moves the front door post
                                          inboard giving amazing visibility out
                                          the side windows. No, you can't even
                                          remotely see ahead, but the view
                                          angled out about 30° to the side on
                                          which you're sitting is quite good.
                                          The visibility the other way, across
                                          the cockpit is also non-existent,
                                          which brings up an interesting point:
                                          When taxiing it takes the tiniest turn
                                          away from your side, to uncover the
                                          entire taxiway ahead of you. "S"
                                          turning is not only unnecessary but it
                                          doesn't work because you have to turn
                                          really sharp, probably 60°, the other
                                          way to see out the opposite side.
                                          Ed Saurenman,
                                          Aviat's Chief Designer/Engineer and
                                          all around aviation junkie, lit the
                                          fire on the IO-360 A1B6, pointed at
                                          the control stick, indicating I had
                                          command, and away we went. There were
                                          no brakes on the right side but I
                                          didn't miss them. The tailwheel is
                                          moderately tight and the airplane
                                          tracked exactly the way my feet moved.
                                          No more, no less. With the exception
                                          of having no idea what was on the
                                          other side of the airplane, it was a
                                          cinch to taxi. Almost like a go-cart.
                                          We'll ignore the
                                          first take off because the right door,
                                          mine, popped open at about 60 mph and
                                          I aborted the takeoff. Ed says they've
                                          flight tested the open door up to 160
                                          mph IAS, but I wasn't all that
                                          interested in taking off with the door
                                          hanging out at a 45° angle. In the
                                          process, however, I got a good feeling
                                          for the airplane's ground handling in
                                          a less than optimum situation: besides
                                          accelerating almost up to takeoff
                                          speed with a door open and wind
                                          hitting me in the face, I had Ed
                                          Saurenman laying across my lap trying
                                          to close the door. At no time did the
                                          airplane do anything stupid. I was the
                                          one who did something stupid in not
                                          getting the locking pins completely
                                          set. The next takeoff was more
                                          successful.


                                          The vernier
                                          throttle (more on that later) doesn't
                                          have to move very fast to get a
                                          terrific reaction out of the airplane.
                                          I eased the power in and got the
                                          airplane rolling then pushed it the
                                          rest of the way and held on. The
                                          engine is exactly the same as in my
                                          Pitts and we were carrying the same
                                          number of people, but the acceleration
                                          was easily half again what I see out
                                          of my own airplane. I think I had
                                          adrenaline pooling in my boots.
                                          I was watching the
                                          side of the runway out my window and,
                                          as the tail came up, I didn't have
                                          time to re-focus my eyes over the nose
                                          before we leaped off the ground. But
                                          this was not a lift-induced leap. This
                                          was the ballistic launch which is part
                                          of flying tiny airplanes with big
                                          motors. What a rush! It would be worth
                                          buying one of these things just to do
                                          that over and over.
                                          The instant we came
                                          off the ground, the left wing came up
                                          and I pressured it back down while
                                          playing with the rudder to keep my
                                          butt in the middle. The airplane
                                          doesn't have a skid ball and doesn't
                                          need one. Even though we were sitting
                                          almost on the CG, it was amazing how
                                          much you could feel the airplane skid
                                          when it wasn't in trim. On every
                                          takeoff the wing would could up and I
                                          couldn't figure out why. Finally, I
                                          asked Ed and he said it was because
                                          that tank was empty and the airplane
                                          was so sensitive to loading that wing
                                          simply flew first.
                                          Usually, I climb a
                                          strange airplane out at a flat angle
                                          to get better visibility but, since
                                          we'd have to be dead level to see over
                                          the nose, I just held it at 100 mph
                                          and watched the ground rapidly
                                          disappear out my side window. The
                                          specs say the airplane will climb at
                                          1700 feet per minute and I wish I had
                                          timed it because that's what my Pitts
                                          climbs at and this was going up
                                          noticeably faster. The airplane is
                                          definitely a rocketship!
                                          As I pushed over
                                          into level flight, the visibility got
                                          better and better until it was almost
                                          normal, but I had to duck my head to
                                          look under the wing for side
                                          visibility. Turns in either direction
                                          felt much better, if I picked up a
                                          wing to clear the area first. As I
                                          played with the controls I could see
                                          that they had done quite a bit with
                                          the ailerons in trying to get away
                                          from the traditional heavy, scratchy
                                          feel of original Monocoupes. They'd
                                          changed some linkages to give the
                                          stick more mechanical advantage, but
                                          were still limited in travel by leg
                                          room. Ed said as soon as he got the
                                          airplane back to the factory, they
                                          were going to design a control stick
                                          with a higher pivot point so they
                                          could increase the mechanical
                                          advantage through the system even
                                          more. The pressures are acceptable, as
                                          is, but everyone, Aviat included,
                                          would like to see them lighter.
                                          Ed had said it was
                                          a "rudder airplane" but it wasn't
                                          until I started messing with the
                                          controls that I saw he wasn't kidding.
                                          As I was turning, I was
                                          consciously trying to coordinate and
                                          was paying special attention to what I
                                          was feeling. There was a lot of
                                          slipping and skidding I was
                                          compensating for but it wasn't until I
                                          tried separating the controls to do a
                                          turn without rudder that I figured out
                                          what was happening. Prior to flying
                                          this airplane, I'd always thought the
                                          Aeronca Chief to be the King of
                                          Adverse Yaw, but it doesn't hold even
                                          a very small candle to the 110 Special
                                          in that area. Using enough aileron to
                                          pull a wing up 15°, with out rudder,
                                          results in the nose going the other
                                          way while the airplane ignores the
                                          entire process and continues straight
                                          ahead indefinitely with the nose off
                                          to one side. In a 15° bank, it would
                                          absolutely refuse to turn without
                                          rudder. Just tap the rudder, however,
                                          and it would come around smartly. I
                                          then found I could lock the stick in
                                          neutral and put in the tiniest amount
                                          of rudder and it would roll into the
                                          nicest, most coordinated turns I've
                                          ever done. Tap the rudder harder and
                                          the airplane would snap into a bank
                                          almost instantly. Old Johnny
                                          Livingston wanted to turn corners and
                                          this airplane would definitely do
                                          that. The roll-yaw couple was by far
                                          the strongest I've ever seen.
                                          Let me make one
                                          thing clear here: even though the
                                          feeling that you have to constantly
                                          play with the rudder is initially
                                          strange, this is no way a negative.
                                          It's just an unusual characteristic
                                          you get used to in a few minutes and
                                          you can fly along indefinitely with
                                          your arms crossed while flying the
                                          airplane just fine with your feet.
                                          If you walk the
                                          airplane back and forth with the
                                          rudder then let go of the rudder, it
                                          immediately locks up in the direction
                                          it was pointed and sets up a fairly
                                          steep spiral and it doesn't make any
                                          difference whether you freeze the
                                          rudder or not. Again, not a bad
                                          characteristic, but one worth noting.
                                          After they got the
                                          airplane back to the factory and
                                          listed all the comments made by
                                          journalists and prospective dealers
                                          who had flown the airplane they made a
                                          number of significant modifications.
                                          Their goal was to make the airplane
                                          handle in a more normal manner. The
                                          mods included increasing the size of
                                          the vertical tail (a big percentage
                                          increase but you still can't see the
                                          difference). They put spades on the
                                          ailerons and changed the linkage to
                                          give more mechanical advantage. I
                                          talked with Ed about the changes in
                                          some detail and he says it completely
                                          eliminates any of the airplanes
                                          "strangeness" and any pilot would find
                                          it to be very normal feeling. He also
                                          said the ailerons are not only much,
                                          much lighter, but the already spiffy
                                          roll rate was even higher. Alright!
                                          I couldn't check
                                          the pitch stability because the bungee
                                          trim system was out of whack and was
                                          constantly biasing the elevator
                                          slightly. The elevators, however, felt
                                          completely normal.
                                          The airplane is
                                          really fast for the power. We were
                                          indicating right at 170 mph at 23
                                          square and Ed says he flight plans 175
                                          mph and always gets it. He also says
                                          he thinks the airplane has another 20
                                          mph in it. Just prior to leaving the
                                          factory, a mechanical glitch had
                                          forced them into replacing the
                                          Hartzell composite two-blade with a
                                          conventional, and shorter, metal prop.
                                          Ed says the instant they did that they
                                          lost 8 knots in cruise. Also, since
                                          its Oshkosh introduction, the airplane
                                          has been under going constant
                                          modification including lowering the
                                          cowl line nearly 3 inches. This
                                          changed the windshield angle and, when
                                          Ed and I got together, the fairing
                                          strip at the top of the windshield was
                                          still the original and had a huge
                                          amount of drag-producing gaposis. He's
                                          confident they'll have the airplane
                                          cruising effortlessly at 190 mph or
                                          more before serial production begins.
                                          I was interested in
                                          how the airplane would stall, so I
                                          chopped the power and held the nose
                                          slightly high. Then, I pulled and
                                          waited. Then, pulled and waited some
                                          more. The airplane didn't want to slow
                                          down and, as it came down through 85
                                          mph, it REALLY didn't want to slow
                                          down. Eventually somewhere in the high
                                          60's, with little or no buffet, those
                                          tiny wings suddenly unloaded, the nose
                                          fell and it rolled off on a wing. It
                                          has a very clean break with not a hint
                                          of a mush. The instant I released back
                                          pressure, however, it was back flying,
                                          even before I brought the power up.
                                          The book stall speed is 68 mph and the
                                          wing is the good old fashioned Clark
                                          Y.
                                          When stalling the
                                          airplane I was careful to keep things
                                          centred as they haven't done the spin
                                          test series yet. For that reason we
                                          couldn't do any aerobatics. This was a
                                          disappointment because Woody Edmunson
                                          in his 110 Special "Little Butch"
                                          helped set the stage for serious
                                          aerobatics in the late 1940's. Once
                                          the spin tests are completed, however,
                                          the airplane will once again be able
                                          to dance, which I imagine it will do
                                          really well. I couldn't measure the
                                          roll rate, but when you put your
                                          shoulder into I'd guess it at
                                          something around 150°/sec.




                                          As we
                                          came back into the pattern, I was
                                          feeling much more comfortable in the
                                          airplane because I found the
                                          rudder-only thing made it much easier
                                          to handle. However, as we slowed down,
                                          I once again had to put some aileron
                                          into the mix. Ed had said to use 110
                                          mph for the first approach (100 is
                                          normal) and I found it dead simple to
                                          put it on an IAS number and keep it
                                          there. It was terrifically
                                          speed-stable throughout the approach
                                          even though we weren't using trim.
                                          Visibility isn't an
                                          issue during the approach. Not at that
                                          speed, anyway. The runway sits in that
                                          tiny windshield, which doesn't seem
                                          that tiny after the first hour, and
                                          lets you drive right down final. It
                                          was about half way down final that I
                                          got yet another surprise: the airplane
                                          really wants to glide. I had expected
                                          it to fall out of the air the second
                                          the power came back and the prop
                                          flattened out, but it didn't. In fact,
                                          I was coming in too high to hit the
                                          numbers.
                                          As we floated down
                                          the runway, I started flaring and, as
                                          the nose came up, I automatically
                                          shifted my eyes to the runway edge
                                          visible in the windshield sliver at
                                          the edge of the instrument panel. As
                                          the nose came up further, my eyes kept
                                          tracking back until I was once again
                                          looking out the door window. It all
                                          seemed very natural, although I don't
                                          like looking at just one side of the
                                          runway to land. I prefer glancing at
                                          both.


                                          I held the airplane
                                          off and it floated and floated, then
                                          gently touched and hopped a little in
                                          three-point. I didn't rush the
                                          throttle, but waited to play with the
                                          rudders as it slowed down. Again, the
                                          airplane followed my feet and, with
                                          the runway edge so clearly in sight,
                                          it wasn't hard to see the changes
                                          needed. I was using very little rudder
                                          and the airplane was giving no
                                          indication it would do anything I
                                          didn't ask it to.
                                          Power up, we
                                          scrambled back into the air. What a
                                          blast! If the sun wasn't just about to
                                          set, I could have kept doing that
                                          until we ran out of gas.


                                          On the last
                                          landing, I was a little slow getting
                                          the tail down and we kissed gently off
                                          the mains setting up a little skip.
                                          Not wanting to drop it in, I thought
                                          I'd ease in just a hint of power. I
                                          got the hint of power in but forgot
                                          about that stupid vernier throttle (a
                                          friend of mine is taking up a
                                          collection to fund AAVT, Aviators
                                          Against Vernier Throttles) and I
                                          didn't get the hint out until it
                                          touched again. And again. And yet
                                          again. Do I get to log all those
                                          landings? Through out the entire
                                          embarrassing episode, the airplane was
                                          absolutely honest and not once did I
                                          feel any centrifugal force against my
                                          seat telling me the airplane was
                                          trying to turn hard. I gave it every
                                          opportunity possible to take a chunk
                                          out of my behind and it just trucked
                                          ahead and did it's thing.
                                          I don't know if the
                                          Aviat 110 Special is indicative of all
                                          such Monocoupes or not, but I was
                                          impressed by its ground handling. It's
                                          honest and direct and is very, very
                                          much like a Luscombe, yet another
                                          airplane with an undeserved
                                          reputation. The only reason a pilot
                                          would have serious trouble with it
                                          would be because he over controlled it
                                          and didn't realize the airplane was
                                          only doing what he told it to do. The
                                          lack of visibility and the rudder
                                          would take a little getting used to
                                          but that's all minor stuff.
                                          The airplane is
                                          really intriguing in that it is an
                                          honest to goodness modern antique that
                                          is useable. It has four hours worth of
                                          gas and can shuffle along at a healthy
                                          clip and let you arrive in style.
                                          Here's an airplane for the antique
                                          buff who wants the appearance and fun
                                          of an antique but wants to go places
                                          at the same time without worrying
                                          about something breaking and letting
                                          him down. It's a new antique for the
                                          new millennium.




                                                  Aviat
                                                  Monocoupe 110 Special
                                                  Power Plant
                                                  Lycoming IO-360 A1B6, 200
                                                  horsepower
                                                  Wing span:
                                                  23'10"
                                                  Overall
                                                  length: 19' 10"
                                                  empty
                                                  weight: 1160 pounds
                                                  Gross
                                                  Weight 1624 lb.
                                                  Vne: 207
                                                  mph
                                                  V cruise,
                                                  75%: 173 mph
                                                  Vstall 68
                                                  mph
                                                  Rate of
                                                  climb: 1700 fpm
                                                  Range @
                                                  cruise: 475 miles
                                                  Fuel Total:
                                                  42 gallons
                                                  Baggage: 20 pounds



                                            |
