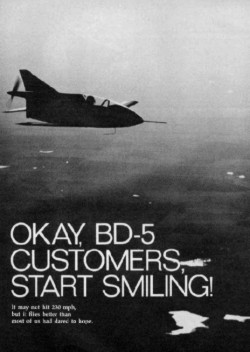

                                          the BD-5 Actually Flies




       by Budd Davisson, courtesy of
       www.airbum.com




                                          Okay all
                                          you skeptics out there (and I was one
                                          of the strongest), let it be known
                                          here and not that, not only does the
                                          BD-5 fly, but about 90 per cent of us
                                          owe Jim Bede a gigantic apology. He
                                          has managed to build a tiny little
                                          wing stability platform that shows
                                          more thought ingenuity and out and out
                                          genius than anything general aviation
                                          has seen for years.

                                          It still has some bugs to iron out in
                                          the engine department but, other wise,
                                          the BD-5 , as we flew it, represents
                                          the first quantum leap forward in
                                          light aircraft design since WWII. As I
                                          was hoisting my fanny up out of the
                                          little cockpit after flying it, all I
                                          could think of was, "Jim Bede, I'm
                                          sorry for all those rotten things I
                                          said about you and your airplane."
                                          He's made a believer out of me.

                                          You have to be a yak-herder in the
                                          Himalaya boonies not to know the saga
                                          of the BD-5 by heart. Every magazine
                                          with a circulation of more than 15 has
                                          run at least one story about the BD-5
                                          and it's rotund, hyperactive
                                          designer-builder-promoter, Jim Bede,
                                          and therein may lie one of the
                                          original seeds of the great Bede
                                          controversy, as it now rages. Too much
                                          was said too early in the game,
                                          promises were made, performance
                                          figures quoted and money taken. So,
                                          when things didn't go like clockwork,
                                          the BD buying public got a little bit
                                          ticked off. (Witness the lynch mobs
                                          lurking in dark corners at Oshkosh,
                                          lying in wait for him.)

                                          There is no doubt that many early Bede
                                          claims were optimistic. No they were
                                          more than optimistic, they were
                                          outlandish (270 mph was promised t one
                                          point).

                                          I sat in the bleachers with the rest
                                          of the aviation community and watched
                                          the whole Bede experience develop. I
                                          booed and hissed right along with the
                                          others. I can clearly remember
                                          receiving a three-view of the very
                                          early Micro and my first impression
                                          was that Jim Bede was absolutely and
                                          irrevocably out of his tree. The
                                          entire thing just wasn't possible. All
                                          of us sidewalk engineers gawked at the
                                          early V-tailed fibreglass prototype
                                          and nodded knowingly. It was generally
                                          agreed that, if it did fly, it would
                                          have the inherent stability of a bongo
                                          board and the handling characteristics
                                          of a Whiffle ball.

                                          After a while the old "it will never
                                          fly" crowd changed their tune to "it
                                          may fly but only a NASA test pilot can
                                          handle it," You see, had to find
                                          something else to gripe about because
                                          that chainsaw with wings was flitting
                                          around at far too many airshows for us
                                          to maintain credibility in the face of
                                          fact. It did fly and appeared to fly
                                          well.

                                          Naturally, there is only one way to
                                          find out if "Joe average pilot" can
                                          fly it and that is to snuggle down
                                          into it and go aviating, so we asked,
                                          "Can we fly your airplane?" The answer
                                          was, "of course." First Bede had to
                                          check a few things out. Next month
                                          maybe. When it was next month, the
                                          answer was in a few weeks, then it
                                          went back up to months. This went on
                                          for over two years. It looked like a
                                          classic holding action against a press
                                          that might leak the news that the BD-5
                                          was nothing more than a cylindrical
                                          coffin with retractable handles.

                                          At Oshkosh the word came down: we
                                          could come down to Newton and fly his
                                          airplane at our convenience. At our
                                          convenience, really? We didn't begin
                                          getting excited until we called him
                                          and he said, "Sure, how about
                                          tomorrow?"
                                          The second I stepped off the plane at
                                          Wichita, I knew it was trouble. It was
                                          blowing about 35 knots in the middle
                                          of the night. They were probably
                                          chaining the cattle to the ground. The
                                          next morning Les Bervin, BD test
                                          pilot, confirmed our suspicions and
                                          allowed as how it wasn't the best day
                                          to be flying the BD-5 for the first
                                          time, but it was okay to fly the BD-5T

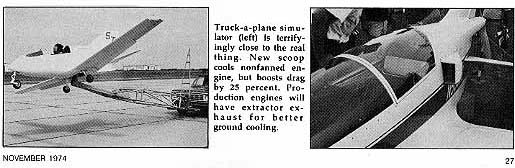

                                          trainer. There two-ton Tinker-Toy
                                          trainer is almost as ingenious as the
                                          BD-5 itself. Using a systems of
                                          springs and booms, they have hung a
                                          clapped-out BD-5 (early victim of a
                                          journey through a ditch) on the front
                                          bumper of a Dodge pick-up truck. The
                                          springs counterbalance the weight of
                                          the boom almost exactly, so any lift
                                          generated by those ridiculous little
                                          wing panels will life it off the
                                          ground and let you shoot
                                          touch-and-goes and make gentle turns
                                          to your heart's content.
                                          Looking at the truck, the airframe and
                                          the rail-straight windsock, I
                                          suggested we draw straws. I lost. The
                                          other two guys locked themselves in
                                          the truck cab, leaving me to be the
                                          first to find out what a Dodge-powered
                                          BD-5 was like. Rich strapped me into
                                          the trainer and explained rotations
                                          speeds and offered a few helpful hints
                                          as he was putting the headset down
                                          over my twitching ears.

                                          My first flight in the trainer was
                                          sort of hop, jiggle, bounce, scrub. I
                                          over-corrected, over-rotated and
                                          over-wound just about everything. the
                                          side stick initially seemed incredibly
                                          sensitive, then, magically, about half
                                          way down the runway things seemed to
                                          smooth out. The second run had me
                                          hopping off the ground like a frog on
                                          a hot rock, but by concentrating on
                                          the runway in front of me and
                                          forgetting where my hand was resting,
                                          I could even keep the wing down and
                                          cancel out the crosswind, which by
                                          this time was a solid 40 knots. The
                                          third time around I rotated off almost
                                          like a normal airplane. I was flying
                                          big gentle S-turns all the way down
                                          the runway while I called out my
                                          height to Rich in the cab to see how
                                          close I was. The fourth run was
                                          unnecessary; I felt like I knew what I
                                          was doing. The rest of the guys had
                                          very nearly the same reaction.




                                          What the BD-Dodge
                                          combination showed me was, first of
                                          all, takeoff happens very quickly and
                                          it is easy to over-rotate. then it was
                                          even easier to over-rotate the
                                          rotation, which caused a little bit of
                                          saw-toothed flight for a while. the
                                          most important thing I learned was
                                          that by focusing my eyes straight
                                          ahead and flying it like one of those
                                          fly-by-wire games in the bus depot, I
                                          could eliminate most of my
                                          over-controlling difficulties. It is
                                          strictly a visual affair because there
                                          is absolutely no fell or pressure in
                                          the control stick. We each had a
                                          chance to look through the flight
                                          manual, but Les sat us all down and
                                          went methodically down the list so
                                          each of us knew what to do when.
                                          Besides all the usual numbers, there
                                          were a few things I found even more
                                          important to remember. The first was,
                                          if the engine quit, we couldn't
                                          restart it. This particular bird had
                                          the starter ring gear removed and they
                                          had to fire it up with a pull-cord.
                                          Also, the clutch and the drive system
                                          is such that the prop freewheels when
                                          the engine isn't running. Even though
                                          the prop is turning, the engine isn't.
                                          that didn't sound too bad, but then he
                                          mentioned that if we touched zero G
                                          for even a second, the float-type
                                          carburettor they had temporarily
                                          installed would choke the engine
                                          deader than a mackerel. well, if
                                          nothing else, I realized that kind of
                                          information would make me tiptoe
                                          around while doing aerobatics.

                                          There aren't a whole lot of airplanes
                                          around in which you can actually
                                          retract the landing gear while sitting
                                          on the ground for cockpit check, but
                                          then, there aren't too many airplanes
                                          six guys can pick up and put on
                                          sawhorses either. That is where we sat
                                          while familiarizing ourselves with the
                                          cockpit. From the instant I
                                          stiff-legged myself down into the
                                          cavern underneath the panel I was
                                          knocked out by the logic of the
                                          cockpit. Everything is in the right
                                          place, easy to use and figure out. The
                                          fuel controls are ahead of the left
                                          console and all the electrical stuff-mags,
                                          master, etc.- on the right one. the
                                          landing gear is a healthy looking
                                          T-handle affair that would look more
                                          at home in a jacked-up GTO. It juts up
                                          between your legs about where the
                                          control stick should be and the flap
                                          handle is right next to it. The
                                          control stick is shaped like a Baby
                                          Ruth you had squeezed in your hand,
                                          and sticks up out the right console.
                                          Only the trim, which is right next to
                                          the throttle, and the stick appear or
                                          feel anything but perfectly placed.

                                          Once up on the sawhorses, we amused
                                          ourselves with the landing gear. It
                                          takes a healthy tug to get it started
                                          up, but more than the, you have to
                                          keep it moving so the inertia of the
                                          gear helps to get the handle over
                                          center. If you don't keep your
                                          shoulder behind it, it will stop
                                          halfway and you'll never get it up.
                                          When you pull and keep on pulling, you
                                          are rewarded (or surprised) with a
                                          healthy whack on the bottom of the
                                          fuselage. There is absolutely no doubt
                                          that the hear is up or down. When it
                                          slams into position, the airplane
                                          practically jumps off of the
                                          sawhorses. It's like being inside of a
                                          giant switchblade. Les had us do it
                                          without moving the stick so we
                                          wouldn't be jumping around in the air
                                          when retracting the gear. it was good
                                          practice, but it didn't work.
                                          we figured the way to beat the wind
                                          was to get up before it did, which
                                          still didn't work. At 5:30 the next
                                          morning, with my eyes clamped shut to
                                          keep my precious bodily fluids from
                                          leaking out, I staggered to the door
                                          to see that it was still blowing up a
                                          mini-storm outside. We thought we'd
                                          had it, but Les stuck a finger into
                                          the breeze and said, "Roll it out;
                                          let's go flying." A few minutes later
                                          I found myself fiddling with chokes,
                                          mixtures and mags and hopping over
                                          expansion joints in the taxiway as I
                                          wended my way down to the runway. In
                                          taxiing, the engine idled at nearly
                                          3000 rpm; it sounded like a lawnmower
                                          trying to run me down. I pressed the
                                          transmit button on the top of the
                                          throttle and said, "I'm ready to go."
                                          My headphones answered, '"Good-bye."

                                          Looking back at it, I'll have to admit
                                          to not remembering much about that
                                          take-off because it all happened so
                                          quickly. The engine revved to about
                                          5000 rpm immediately and the 52 hp
                                          behind me started kicking me down the
                                          runway at an astonishing rate. At 50
                                          mph I started picking up the nosewheel,
                                          which skipped a couple of times; as I
                                          rocketed to 60-65 I was up and away.
                                          The take-off was almost toy-like. I
                                          bobbed around a bit, more from
                                          surprise than from anything else. As
                                          soon as I started watching what I was
                                          doing and got out of ground turbulence
                                          at 10 feet, it settled and felt almost
                                          as solid as a Cessna 150 would have in
                                          the same wind. At around 75-80 I
                                          reached down for the landing gear,
                                          completely forgetting the keep-on-pullin'
                                          retraction technique. I gave it a
                                          cursory jerk. As the handle came to a
                                          halt in the midway position, I called
                                          myself a few choice names and rammed
                                          it forward to lock it down again.
                                          While I was busy jamming the gear
                                          handle, I forgot where my right hand
                                          was and unconsciously tweaked the
                                          stick. This caused the airplane to
                                          jump around. When I gave the gear a
                                          healthy pull it obediently leaped into
                                          the wells. As the gear came up and I
                                          let the flaps up slowly, the speed
                                          wrapped up to 1-- mph pronto.

                                          The best-rate-of-climb speed was 90
                                          mph, but I was keeping it at around
                                          100 for cooling. We climber 1200 feet
                                          per minute with 52 hp blatting away
                                          behind, the tack working its way up to
                                          6500 rpm and the 182 camera plane
                                          disappearing fast.
                                          The most surprising thing about those
                                          first few minutes of flight is that
                                          everything seemed so normal. I didn't
                                          even bother to look out at those
                                          tooth-pick wings or marvel at the
                                          incredible visibility. It just felt
                                          that was the way airplanes should be
                                          this was an airplane and it just flew
                                          like one. I wanted it to feel strange
                                          and exotic, but things fit together
                                          too well.
                                          Set your hand on the chair next to you
                                          right now and make a list. Now wiggle
                                          it left-to-right while keeping your
                                          elbow stuck to the chair. If you don't
                                          move the top of our fist more than
                                          half an inch or so, you'll see what it
                                          is like to fly a BD-5. there is no
                                          noticeable resistance and practically
                                          no movement of the stick. If you
                                          twitch your hand an inch to the side,
                                          you've just done a roll. Move it an
                                          inch or so back and you loop. Now,
                                          that sounds like it's sensitive, but
                                          for some reason or another it doesn't
                                          work out that way. It's got to be the
                                          most natural way to shepherd an
                                          airplane around I have ever seen.

                                          Les had sworn that the stalls were
                                          nothing to write books about and he
                                          was right. In any configuration it
                                          would shake, buffet, leap and groan as
                                          you crept up to the stall, One wing
                                          would unload as it would roll off in
                                          one direction of the other. I'd keep
                                          the stick completely back and porpoise
                                          ahead, using aileron and rudder to
                                          keep everything square with the world.
                                          the instant-I mean the very
                                          instant-the elevator was released, the
                                          little beastie would be flying again.
                                          Clean it was stalling at about 65, and
                                          dirty at about 55.
                                          I cursed the zero-G carburettor as I
                                          sucked the nose up and tweaked my hand
                                          left to watch the sky and ground swap
                                          places. With just a little inverted
                                          capability-just a couple of
                                          seconds-you could drag the rolls out
                                          into long, sensuous affairs over which
                                          you'd have infinite control. I'll have
                                          to wangle another flight when they put
                                          the new carburettor on, I guess. you
                                          can roll fast or your can roll slow,
                                          four points or eight, left or right,
                                          and barely move your hand. To the
                                          right, rolls are just a little more
                                          difficult, because your wrist works
                                          more naturally inboard than it does
                                          outboard. Full aileron deflection is
                                          only about a 2-inch twist of your
                                          wrist, but you almost never need it.
                                          The roll rate is fast, about 150
                                          degrees per second, which is just a
                                          tad slower than a roundwing Pitts. I
                                          can't begin to describe the total
                                          precision of these controls. They
                                          don't even come close to being
                                          sensitive, but they put more control
                                          in the palm of your hand than any
                                          other airplane I know.

                                          Now, almost nobody reading this is
                                          going to believe my next statement,
                                          yet it's absolutely true: the BD-5 is
                                          one of the most stable little
                                          airplanes flying. When I'd set it up
                                          hands-off and then pulse the
                                          stick-just bash it forward or back-the
                                          nose would come up and then-bam-come
                                          back to level and not move again.
                                          There was almost no sign of
                                          oscillations of any kind. The same if
                                          true of yaw: punch and rudder, and the
                                          nose snaps back as soon as you let go.
                                          In roll it seems just a little more
                                          neutral. The wings stay pretty much
                                          where you put them. I tested all this
                                          stability out by grooving around for a
                                          while as I used both hands to adjust
                                          my headset and boom mike, to eliminate
                                          some communications problems (which
                                          turned out to be my inability to read
                                          "volume" one the radio face).
                                          The BD-5's high thrust line means a
                                          nose-down pitch with poser. (the nose
                                          comes up when you back off the
                                          throttle). Speed and power changes do
                                          give a fair amount of trim change, but
                                          I had been flying for a while before I
                                          noticed that I had been unconsciously
                                          moving the trim control with the thumb
                                          of my throttle hand all along.

                                          I knew Bede had done complete spin
                                          tests, and Les had told us to go ahead
                                          and spin it. But I'll admit that I put
                                          spins off until I worked up my nerve.
                                          Finally, I got the power back, got the
                                          stick back, and kicked rudder as it
                                          stalled. Instantaneously it snapped
                                          over on its back and twisted downward
                                          into a near-vertical spin. the first
                                          turn was more of a snap roll, the
                                          second turn was very oscillatory, with
                                          the nose coming up fairly high. They
                                          the nose dropped to about 60 degrees
                                          and stabilized in a very fast spin.
                                          Sixty degrees, by the way, looks like
                                          you're going straight down. Les had
                                          said that the airplane had a distinct
                                          stick-free spin mode, here the reduced
                                          drag of neutralize controls caused the
                                          speed to increase and the spin to wrap
                                          up very tight. That's why it needs a
                                          classic NACA spin recovery: bash the
                                          stick well forward and nail opposite
                                          rudder hard.

                                          Naturally, I managed to botch up the
                                          recovery. I moved the stick forward
                                          too slowly at the end of three turns,
                                          and it immediately cracked around in
                                          two more lightning-fast turns before I
                                          got the stick far enough forward. I
                                          recovered in less than half a turn,
                                          going absolutely straight down. I
                                          instinctively loaded a slight positive
                                          G on it to keep that carburettor
                                          happy, and, in so doing, got a slight
                                          secondary spin in the other direction.
                                          But that topped almost immediately.
                                          the second time I spun it, I did what
                                          Les had told me to do, and it popped
                                          out instantly. It's a very
                                          predictable-spinning airplane, but you
                                          have to move like you mean business to
                                          stop it where you want it.
                                          On the way back into the pattern, I
                                          made a couple of speed runs at 5,000
                                          feet AGL. (9,000 feet density altitude
                                          for that day). I was showing an even
                                          155 mph cruise, and that works out to
                                          177. Later, Peter did the same thing
                                          down lower, at 1,000 feet, and got a
                                          solid 175 mph indicated, which works
                                          out to 188.

                                          I knew I couldn't stay up all day and
                                          avoid the landing. I flew a wide
                                          360-degree overhead pattern, coming
                                          downwind at 100 mph and base at 90. It
                                          had taken me forever to get into the
                                          pattern, because power off, at 85 mph,
                                          I was only showing about 380 fpm
                                          descent. I was beginning to wonder
                                          about getting down before lunch. Les
                                          had said the gear worked like
                                          spoilers, and when I dropped it, I saw
                                          what he meant. With gear and flaps
                                          down I had to use just a tad of power
                                          to fight the wind as I turned final
                                          for the taxiway we were using the
                                          land. (It was smoother than the
                                          runway.)

                                          The pitch stability came in handy for
                                          holding 85 right on the money as I
                                          jockeyed the power just a little to
                                          stay on glide path. I kept reminding
                                          myself what the view over the nose in
                                          the trainer had looked like as I came
                                          closer to the ground. the wind tried
                                          to boggle me around but a tweak here
                                          and a tweak there kept everything
                                          perfectly lined up. As the pavement
                                          started to get closer, I gently (very
                                          gently) started to flare. The second I
                                          moved the nose, the airplane stopped
                                          coming down. So, I relaxed a bit and
                                          started feeling for the ground. Lower.
                                          Lower. Lower. Suddenly I knew I was
                                          only a foot or so off and I started a
                                          game with the wind. I tried to hold it
                                          up as the wind stared to bat me
                                          around. Plunk, and the mains were on.
                                          I tried to hold the nose hear up, but
                                          the flaps were too much for it and it
                                          dropped onto the pavement anyway. We
                                          were on the ground at around 60 mph.
                                          The roll out was easy to control with
                                          the rudder and I didn't need to use
                                          the brake at all until I was ready to
                                          turn into the parking area.

                                          Well, I think we've discovered what
                                          kind of pilot it takes to fly the
                                          BD-5. Any proficient 150-hour pilot
                                          could learn to handle it, but only if
                                          he had already developed certain
                                          skills and mental attitudes. He'd
                                          better be an accurate pilot. He can't
                                          make vague, unmetered control
                                          movements or be only fuzzily aware of
                                          what he sees over the nose. The
                                          airplane is capable of absolute
                                          precision, and to make consistently
                                          smooth landings and takeoffs, the
                                          pilot must use that precision. Most
                                          pilots are sloppy; they'll have to
                                          de-slop themselves before the fly the
                                          Five. the guy who takes great pride in
                                          making nothing but squeakers right on
                                          the centreline won't have any trouble
                                          at all. This type of mental attitude
                                          is totally independent of flight time,
                                          and can be present or absent
                                          regardless of how fat the logbook may
                                          be.
                                          Flying the trainer would be the best
                                          bet for transitioning into the Bede.
                                          There you get the super-low ground
                                          attitude, seating position, and
                                          control response all in one package.
                                          Otherwise a glider-especially
                                          something like a Blanik or a 1-34-will
                                          give you a perfect learning situation
                                          for the supine seat and ground-hugging
                                          landing attitude. an older Yankee
                                          would give you the basic control
                                          responses-the brake-only directional
                                          control, and similar stall
                                          characteristics., (the BD-5's are far
                                          better.)

                                          Asked how I feel about it, I can only
                                          say that now I wish I hadn't let my
                                          scepticism keep me from putting down
                                          my $400 deposit for a production
                                          model. Oh, well . . . Bede probably
                                          has something else up his sleeve, and
                                          you can bet I'll put my money where my
                                          doubts are this time.




                                            |
